The metadata construct is a particular field that contains all the information that is not useful to be stored as part of the contract state history. It has a maximum size of 64 KiB and can be used, for example, to host temporary data from a complex contract validation procedure by the AluVm engine. |
*** |
# Features of RGB State |
## Strict Type System |
As described in the previous sections, the [state](https://docs.rgb.info/annexes/glossary#contract-state) represents a set of conditions that are subjected to validation against both the [business logic](https://docs.rgb.info/annexes/glossary#business-logic) and ordered history of commitments. |
In RGB, this set of data is actually an **arbitrary rich set of data** which: |
* Are **strongly typed**, meaning that **each variable has a clear type definition (e.g. u8) and lower and upper bounds.** |
* Can be **nested**, meaning that a type can be constructed from other types. |
* Can be organized in `lists`, `sets` or `maps`. |
To properly encode data in the state in a reproducible way, a [Strict Type System](https://docs.rgb.info/annexes/rgb-library-map#strict-types-and-strict-encoding) has been adopted in RGB along with [Strict Encoding](https://docs.rgb.info/annexes/rgb-library-map#strict-types-and-strict-encoding). This means that: |
* Encoding of the data is done following some [Schema](https://docs.rgb.info/annexes/glossary#schema) structure which, unlike JSON or YAML, defines a precise layout of the data, thus also allowing deterministic ordering of each data element. |
* The ordering of elements within each collection (i.e., in lists, sets or maps) is also deterministic. |
* Bounds (lower and upper) are defined for each variable or data structure. This property is also applied to the number of elements in each collection (the so called **Confinement**). |
* All data fields are byte-aligned. |
* Data serialization and hashing are performed deterministically (Strict Encoding), allowing **reproducible commitments** of the data to be created regardless of the system on which that operation is performed. |
* Data creation according to the schema is **performed through a simple description language which compiles to binary form** from the Rust Language. Extension to other languages will be supported in the future. |
* In addition, compilation according to the Strict Type System produces two types of output: |
* A **compile-time Memory Layout**. |
* **Semantic identifiers** associated with memory layout (i.e., the commitment to the name of each data field). For instance, this type of construction is able to make detectable the change of a single variable name, which **doesn't change the memory layout** but **changes the semantics**. |
* Finally, Strict Type System allows for **versioning** of the compilation schema, thus enabling the tracking of consensus changes in contracts and the compilation engine. To this end each compilation of an RGB object, being it a Schema or RGB libraries themselves, produces an **unique fingerprint** such as: |
`RWhwUfTMpuP2Zfx1~j4nswCANGeJrYOqDcKelaMV4zU#remote-digital-pegasus` |
As a matter of fact, Strict Encoding is defined both at an extremely pure functional level (thus far away from object-oriented programming (OOP) philosophy) and at a very low level (almost a hardware definition, thus far removed from more abstract structures and languages). |
### Size limitation of validated data |
Regarding **data participating in state validation**, the RGB protocol consensus rule applies a **maximum size limit** of 2^16 bytes (64 KiB): |
* To the size of **any type of data** participating in state validation (e.g. a maximum of 65536 x `u8`, 32768 x `u16`, etc...) |
* To the **number of elements of each collection** employed in state validation. This is designed to: |
* Avoid unlimited growth of client-side validated data per each state transition. |
* Ensure that this size fits the register size of a particular virtual machine [AluVM](https://docs.rgb.info/rgb-state-and-operations/state-transitions) that is capable of performing complex validations along with RGB. |

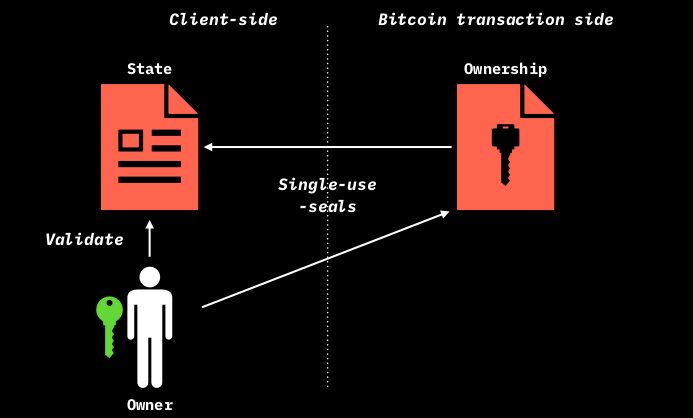

## The Validation != Ownership Paradigm in RGB |
One of the most important features of RGB compared to most blockchain-based smart contract systems is based on the **clear separation between the validation task and ownership** that are defined by the protocol at the most fundamental level. |
 |
In practice: |
* The **Validation** task, performed by users and observers of the protocol, ensures **how the properties of a smart contract can change** and thus the internal consistency and adherence of state transitions to the smart contract rule. This process is fully realized by the stratification of the stack of [RGB-specific](... |
* The **Ownership** property, which, through the definition of the seal pointing to a Bitcoin UTXO, **defines who can change the state**. The security level of this property depends entirely on the security model of Bitcoin itself. |
This type of separation **prevents the possibility of mixing the non-Turing complete capabilities of smart contracts with the public access to contract states** that is embedded in almost all blockchains with advanced programming capabilities. In contrast, **the use of these common "mixed" architectures has led to freq... |
Moreover, based on Bitcoin's transaction structure, RGB can exploit the **features of the Lightning Network** directly. |
## RGB Consensus Changes |
As another important feature, RGB has, in addition to Semantic Versioning of data, a **Consensus Update System**, which tracks changes in consent in [contracts](https://docs.rgb.info/annexes/glossary#contract) and [contract operations](https://docs.rgb.info/annexes/glossary#contract-operation). |
There are basically two ways to update the consent rule embedded in the protocol. |
### **Fast-forward** |
A **fast-forward** update occurs when *some previously invalid rule becomes valid*. Despite the similarities, this kind of update is **NOT comparable to a blockchain hardfork**. The chronological history of this kind of changes is mapped into the contract through the [Ffv field](#components-of-a-contract-operation) of ... |
* Existing owners are not affected. |
* New beneficiaries must upgrade their wallets. |
### Push-back |
A **push-back** update occurs when *some previously valid state becomes invalid*. Despite the similarities, this kind of update is **NOT comparable to a blockchain softfork**, and furthermore: |
* Existing owners can lose assets if they update their wallets. |
* It's actually a new protocol, no longer the same version of RGB. |
* Can only occur through issuers reissuing assets on a new protocol and users using two wallets (for both the old and new protocols). |
# Schema |
An RGB Schema represents a template that can be used to issue contracts having a common structure, embedding the rules of [contract operations](https://docs.rgb.info/annexes/glossary#contract-operation) representing its [business logic](https://docs.rgb.info/annexes/glossary#business-logic) and thus describing how its ... |
An RGB Schema is the analog of a class for an OOP language. Hence such a construction is used to define the various standards for RGB contracts and assets, for example: fungible assets, collectibles, digital identities, etc. |
The [issuer](https://docs.rgb.info/annexes/glossary#contract-participant) of an asset on RGB uses (and makes available to the public) a Schema in order to define the issuance properties encoded in the Genesis. This way, the contract can be supported by RGB wallets and become fully operational. Thus, **when the users re... |
In fact, the Schema validation is the very first operation step that a user needs to undergo before interacting in any way with the contract (e.g. to perform the desired contract operations). |
From a functional point of view, the **Schema construct addresses the following questions**: |
* What kinds of owned states and [Assignments](https://docs.rgb.info/annexes/glossary#assignment) exist? |
* What [Global State](https://docs.rgb.info/rgb-state-and-operations/components-of-a-contract-operation#global-state) does the contract have? |
* How is [Genesis](https://docs.rgb.info/annexes/glossary#genesis) structured? |
* What kind of [State Transitions](https://docs.rgb.info/annexes/glossary#state-transition) are possible? |
* What [Metadata](https://docs.rgb.info/rgb-state-and-operations/components-of-a-contract-operation#metadata) can contract operations have? |
* How state data are allowed to change within state transitions? |
* What sequences of transitions are allowed? |
