🧱 TSUMM-SUITE Training Set

This repository provides the training set of TSUMM-SUITE, a multimodal dataset for unified time series understanding and generation. It contains forecasting and imputation tasks for TS-image generation, together with six TS-image understanding tasks derived from the same time series instances. By aligning understanding tasks with generation tasks, TSUMM-SUITE enables temporal understanding to improve time series generation.

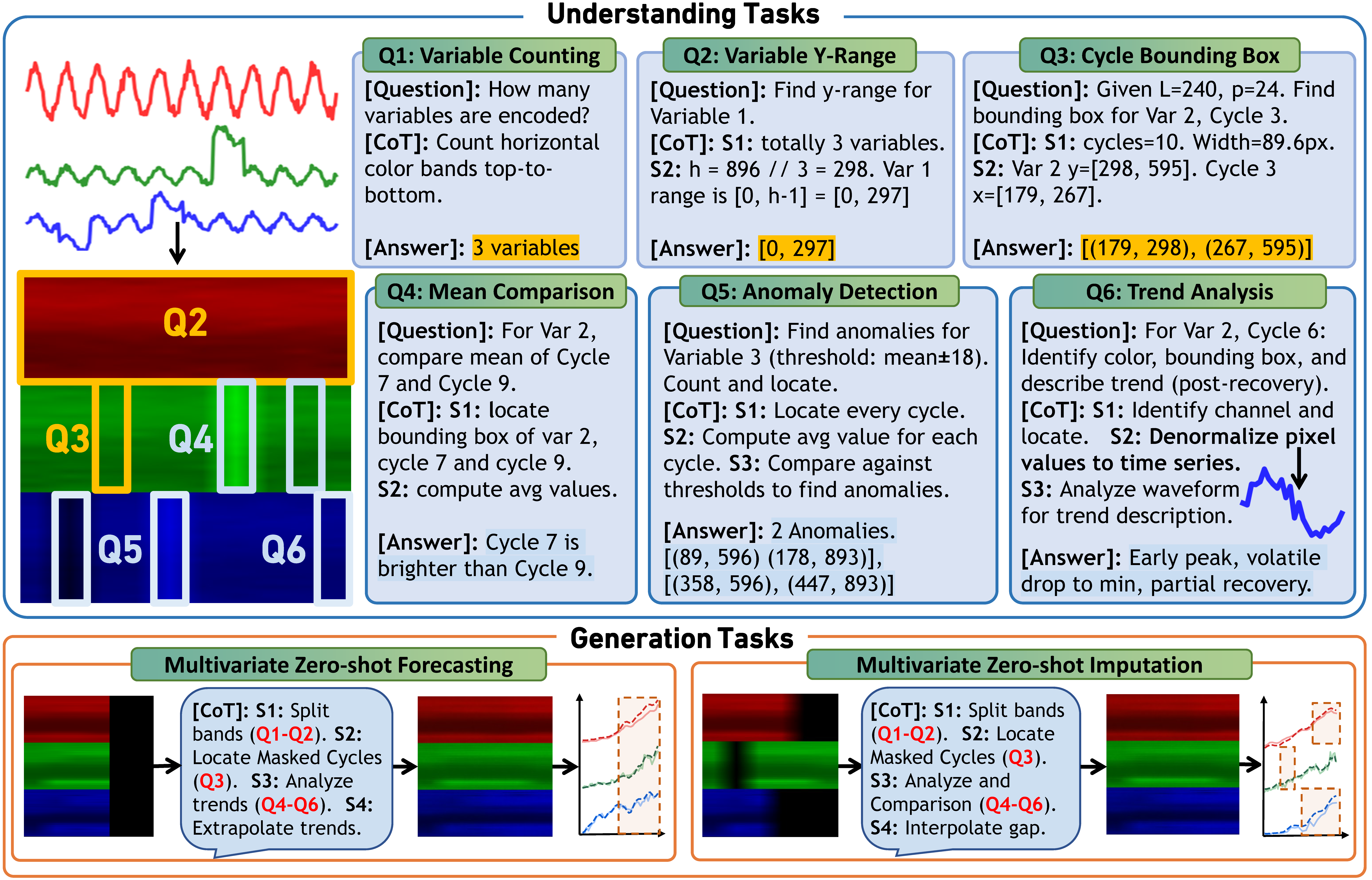

🎨 Task Illustration

TSUMM-SUITE covers two task families:

Generation tasks

• Forecasting. Complete the masked future region of a TS-image and decode the generated image region back into future numerical values.
• Imputation. Complete masked internal regions of a TS-image and decode the generated image region back into missing numerical values.

Understanding tasks

• QA1: Variable Counting. Count the number of variables encoded in a TS-image.
• QA2: Variable Y-Range. Locate the vertical range of a specific variable.
• QA3: Cycle Bounding Box. Locate the spatial region of a target cycle.
• QA4: Mean Comparison. Compare average values across cycles.
• QA5: Anomaly Detection. Identify and locate anomalous regions.
• QA6: Trend Analysis. Analyze temporal patterns within a specified region.

📊 Dataset Information

1. Dataset Components

Component	Task Family	Size	Description
Forecasting	Generation	40,000	TS-image completion samples for future sequence generation
Imputation	Generation	40,000	TS-image completion samples for missing-value reconstruction
TS-image QA	Understanding	9,409	CoT-guided QA pairs for layout-level and signal-level TS-image understanding
TSR-Suite	Reasoning	2,339	CoT-guided temporal reasoning samples used to strengthen temporal reasoning

2. Data Fields

Generation samples contain fields such as:

• sample_id: unique sample identifier
• task_type: forecasting or imputation
• instruction: task instruction for generation
• source_image: masked TS-image input
• target_image: ground-truth completed TS-image
• target_series: numerical target sequence
• generation_cot: temporal reasoning used as generation condition
• metadata: frequency, prediction length, mask ratio, number of variables, and related information

Understanding samples contain fields such as:

• question_id: unique QA identifier
• image: TS-image input
• question: natural-language question
• cot: reasoning chain
• answer: ground-truth answer
• qa_type: one of QA1–QA6
• level: layout or signal

🚀 Usage

from datasets import load_dataset

dataset = load_dataset("YOUR_ORG/TSUMM-SUITE")

forecasting = dataset["forecasting"]
imputation = dataset["imputation"]
understanding = dataset["understanding"]
reasoning = dataset["reasoning"]

📐 Evaluation

For forecasting and imputation, we report normalized Mean Absolute Scaled Error (nMASE). Lower values indicate better numerical generation quality.

For TS-image understanding, we report normalized task-specific scores in the range of [0, 1]. Higher values indicate better understanding performance.

For TSR-Suite reasoning tasks, we report Accuracy (ACC) for text-output tasks and Mean Absolute Error (MAE) for sequence-output tasks.

License

TSUMM-SUITE is released under the Apache 2.0 license.

✍️ Citation

@article{guan2026timeomni,
  title={TimeOmni-VL: Unified Models for Time Series Understanding and Generation},
  author={Guan, Tong and Pan, Sheng and Barthelemy, Johan and Li, Zhao and Cai, Yujun and Alippi, Cesare and Jin, Ming and Pan, Shirui},
  journal={arXiv preprint arXiv:2602.17149},
  year={2026}
}
